11(National Museum of Naval Aviation - NAS Pensacola) |
 |
(Courtesy PBYCIA) |

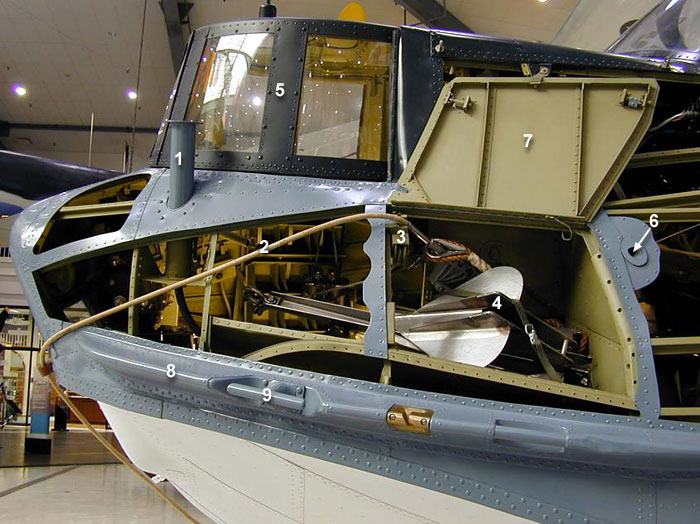

| This view is of the port side.
Visible is the: 1. Retractable mooring bollard or stantion 2. Pendant 3. Anchor Reel 4. Anchor 5. Bow Turret 6. Step (not installed in this view) 7. Anchor compartment door 8. Gunwale (gunnel) and 9. Cleats for line handling |
